RC controllers are very convenient products in communications. However, sometimes it is not easy to integrate this controllers on different platforms becouse of their PWM output signals. It is possible to get digital output in 1 and 0 format with this modul to be used with RC controllers. This makes life esaier on wireless control applications.

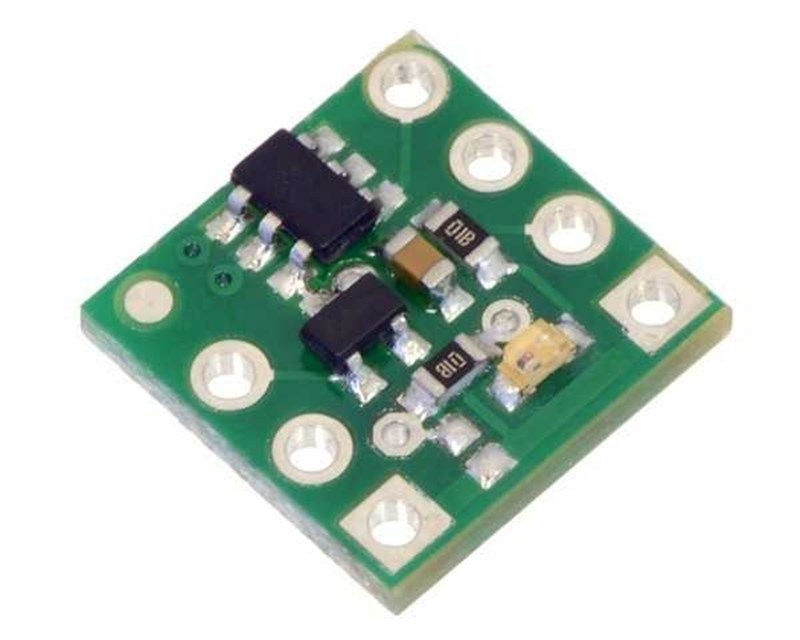

This RC controllers compatible modul is designed to be used with directly microcontrollers. It is very useful and small. With the logic signal recieved by the microcontroller it is possible to do anything with this RC switch. Additionally you may choose to use it without a microcontroller for simple applications like LED controlling or mosfet - relay triggering.
You may protect the board with safe starts and safe guidance, this prevents the board from over loads. The input voltage of this modul is between 2.5 V and 5.5 V, so it is possible to operate this modul with 3.3 V or 5 V systems.
Features:
- Operating voltage: 2.5 V - 5.5 V
- Max. output current: 15 mA
- PCB dimensions: 1 mm x 1 mm
- Weight: 0.3 gr
