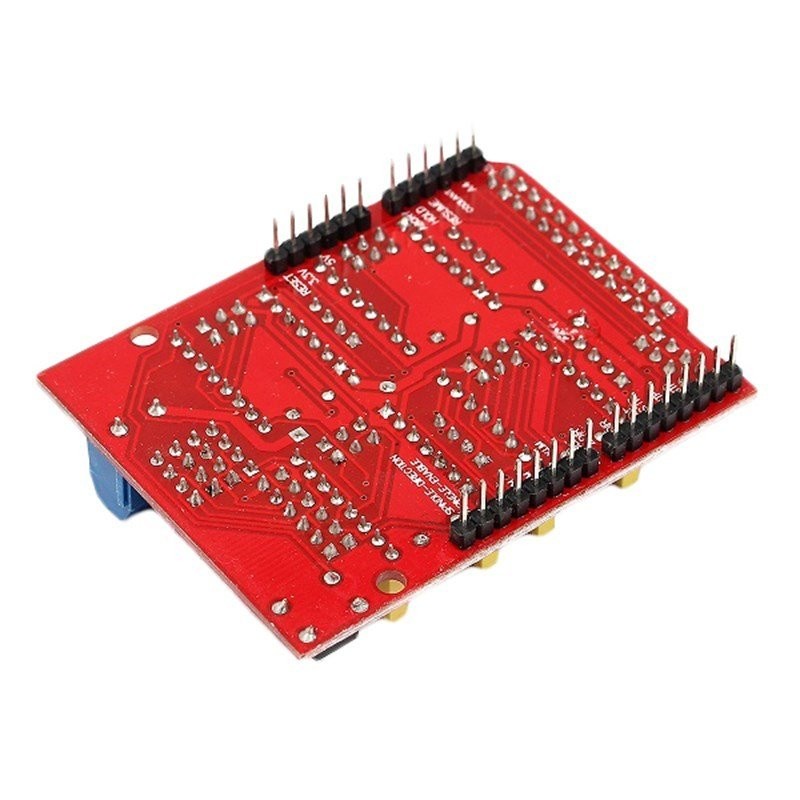

Arduino Uno CNC Shield Board
Version: 3.0
Color: Red
Size(L*W*H): 68 x 53 x 18 mm
Voltage: DC 12~36 V
Features:
1. Uses removable A4988 or DRV8825 compatible stepper drivers.
2. The extension board can be used for carving machine, 3 d printer driver expansion board
3. GRBL 0.8 compatible. (Open source firmware that runs on an For Arduino UNO that turns G-code commands into stepper signals)
4. PWM Spindle and direction pins,4-Axis support (X, Y, Z , A-Can duplicate X,Y,Z
or do a full 4th axis with custom firmware using pins D12 and D13)
5. Compact design. Stepper Motors can be connected with 4 pin molex connectors or soldered in place.
6. Please note that this is an unassembled kit and Basic soldering skills are needed.
