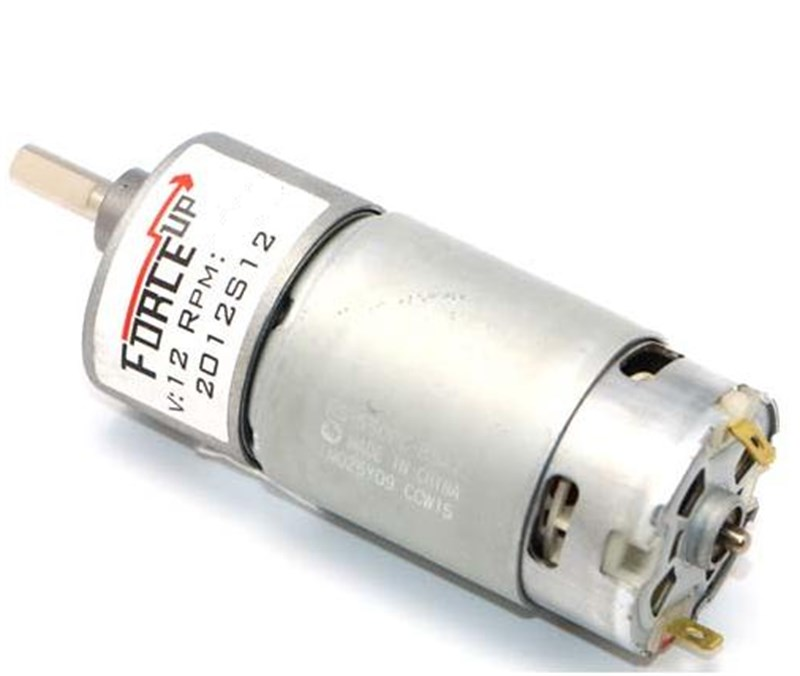

Proton High Power 150W DC Motor 12V 10Rpm
18,00 USD
Highly Recommended for Heavy Duty Projects and Sumo Robots. Choice of Professionals and Winner
Forceup 37mm Series Dc Gear Motor useful for industrial project, Diy Project, Sumo Robot Projects. Most remarkable features about the Motors is that the Power and Speed.
Why I buy Forceup 37mm Dc Gear Motor ?
• High Torque
• Steel Gears
• Stable working in Hard Condition
• Long term Using
• Unique Design
• Unbreakable Gears
• Voltage Range
• Special Shaft
• All Tested and Quality Check
It is being used in student final year projects, and competition robot.
Sample Application: lightweight mechanism such as: bank note machine, handling machine, educational robot, etc
At only 345 grams , these are a lightweight yet 150W powerful motor.
Working voltage is 12v but You can increase from 6v to 16v and you can feel the power
- Voltage: 12V
- Speed: 10Rpm
- Stall Torque: 60 kg-cm
- Stall Current: 25A
- Current: 2,7A
- Shaft Diameter is 6mm and D type
- Shaft Dimension is 17,5mm
- Motor size 37mm
- Weight: 345gr
- Lenght top to end: 106mm
The face plate has six mounting holes evenly spaced around the outer edge threaded for M3 screws.
