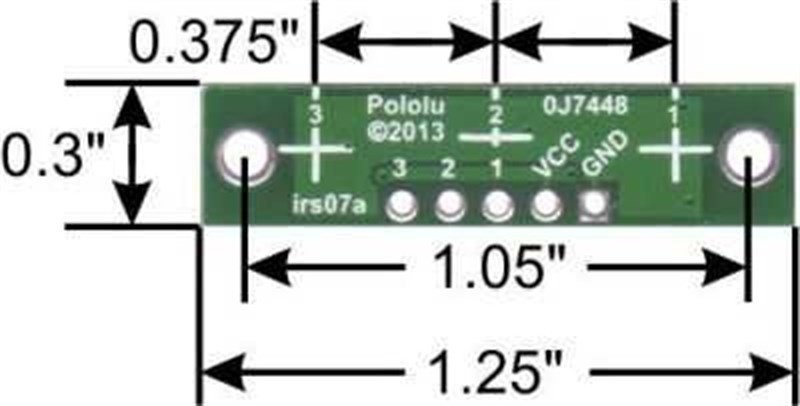

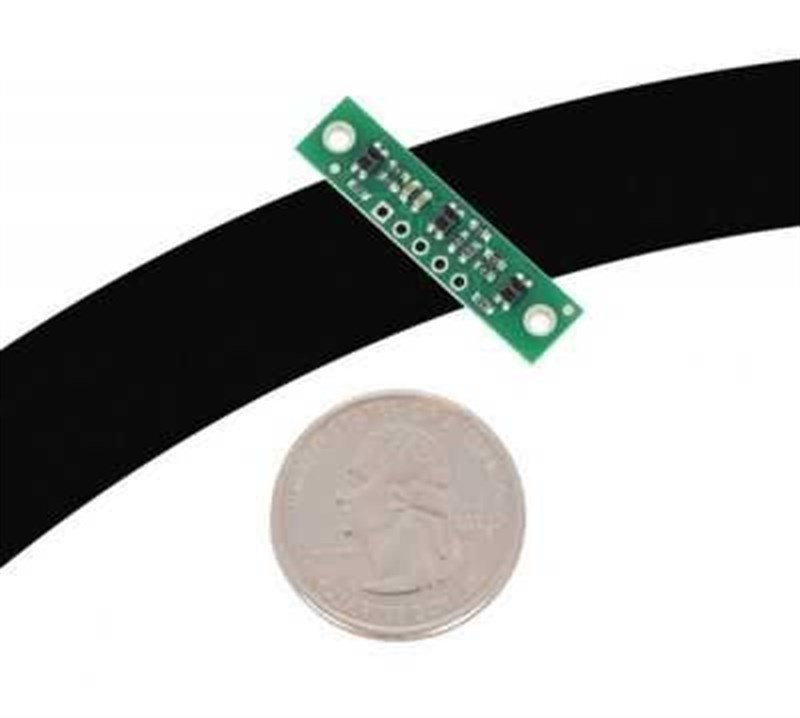

  • The QTR-3RC reflectance sensor array is intended as a line sensor, but it can be used as a general-purpose proximity or reflectance sensor. The module is a convenient carrier for three IR emitter and receiver (phototransistor) pairs. With sensors spaced at intervals of 0.375″ (9.525 mm) along of the board’s longer axis, this array works well as a minimal detector for line-following robots, as line-following courses are commonly made using 3/4″ (19 mm) black electrical tape. The middle sensor is slightly offset along the short axis of the board.

    To use a sensor, you must first charge the output node by applying a voltage to its OUT pin. You can then read the reflectance by withdrawing the externally supplied voltage and timing how long it takes the output voltage to decay due to the integrated phototransistor. Shorter decay time is an indication of greater reflection. This measurement approach has several advantages, especially when multiple units are used:

    • No analog-to-digital converter (ADC) is required
    • Improved sensitivity over voltage-divider analog output
    • Parallel reading of multiple sensors is possible with most microcontrollers

    The LED current-limiting resistors are set to deliver approximately 17 mA to the LEDs when VCC is 5 V, making the total board consumption just over 50 mA.

    This module has two mounting holes intended for #2 screws (not included); if the mounting holes are not needed, the ends of the PCB can be ground off to make the unit even smaller (less than 1″ wide). The reflectance sensor array ships with a 1×5 straight male header strip and a 1×5 right-angle male header strip. You can also solder wires, such as ribbon cable, directly to the pads for the smallest installation.

    Features:

    • 5VDC Operating Voltage
    • 50mA Supply Current
    • Digital I/O Compatible
    • Optimal Sensing Distance: 0.125” (3mm)

    Dimensions:

    • 32 x 8 x 2.54 mm
