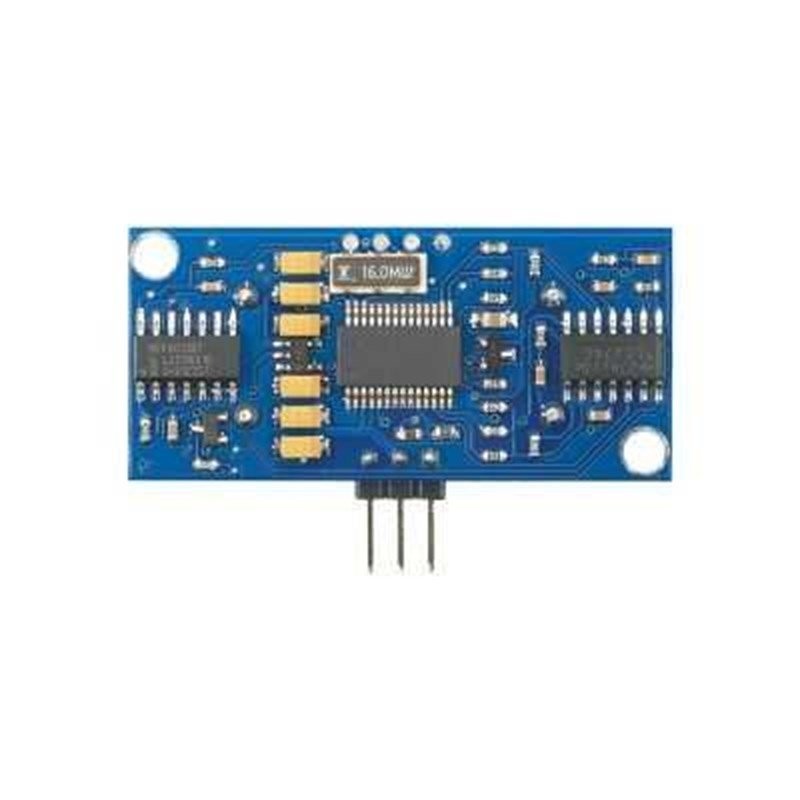

Parallax PING Ultrasonic Sensor

-

+

Lorem ipsum dolor sit amet,consecteturdipisi eiushaliquast. o dtempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim.
Lorem ipsum dolor sit amet,consecteturdipisi eiushaliquast. o dtempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim.
Lorem ipsum dolor sit amet,consecteturdipisi eiushaliquast. o dtempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim.
Lorem ipsum dolor sit amet,consecteturdipisi eiushaliquast. o dtempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim.
Campaign

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • This sensor is perfect for any number of applications that require you to perform measurements between moving or stationary objects. This ultrasonic distance sensor is widely used in robotics applications and is also useful in security systems or as an infrared replacement. The activity status LED and the economic use of 1 I/O pin makes it an efficient and effective product.

    The Ping sensor measures distance using sonar; an ultrasonic (well above human hearing range) pulse is transmitted from the unit and distance-to-target is determined by measuring the time required for the echo return. Output from the Ping sensor is a variable-width pulse that corresponds to the distance to the target. A single shared I/O pin is use to trigger the Ping sensor and listen for the echo return pulse. An onboard three-pin header allows the Ping to be plugged into a solderless breadboard.

    Features
    • Provides precise, non-contact distance measurements
    • Measures between moving or stationary objects
    • Simple Pulse in/Pulse out communication
    • RoHS compitable
    • 2 cm to 3 m range
    • 20 mA power consumpion
    • 3 pin












    Technical Details:

    • Power: +5VDC
    • Communication: Positive TTL Signal
    • Dimensions: 22 x 46 x 16 mm
    • Operating Temperature Range: 0-70 °C
