  • Time to Meet MiniZade Mini Sumo Robot Board

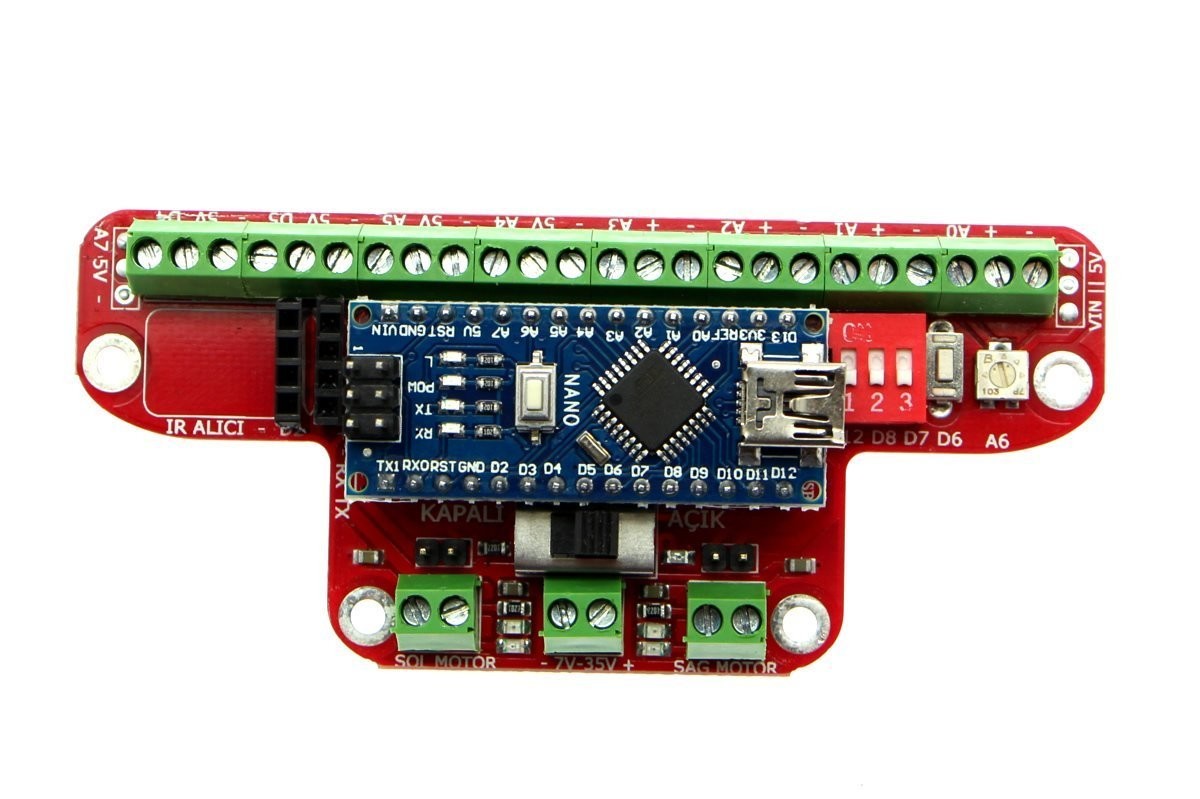

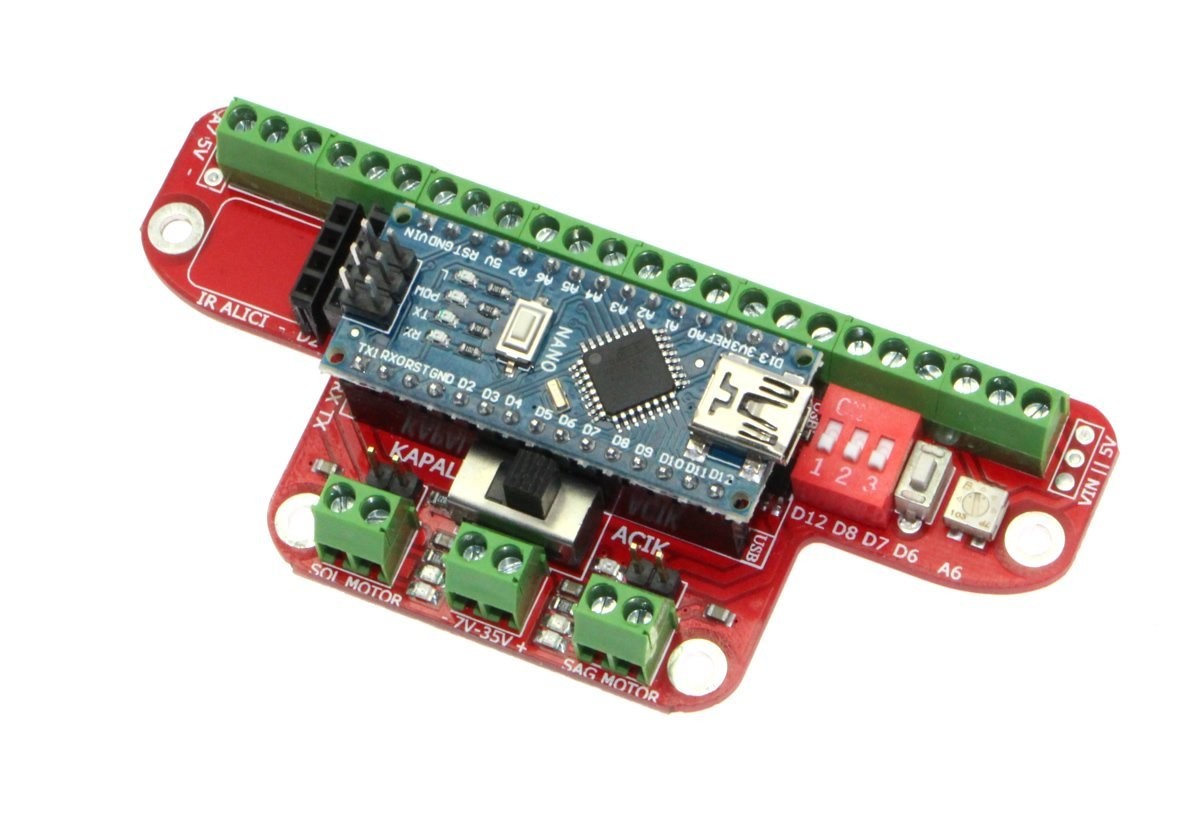

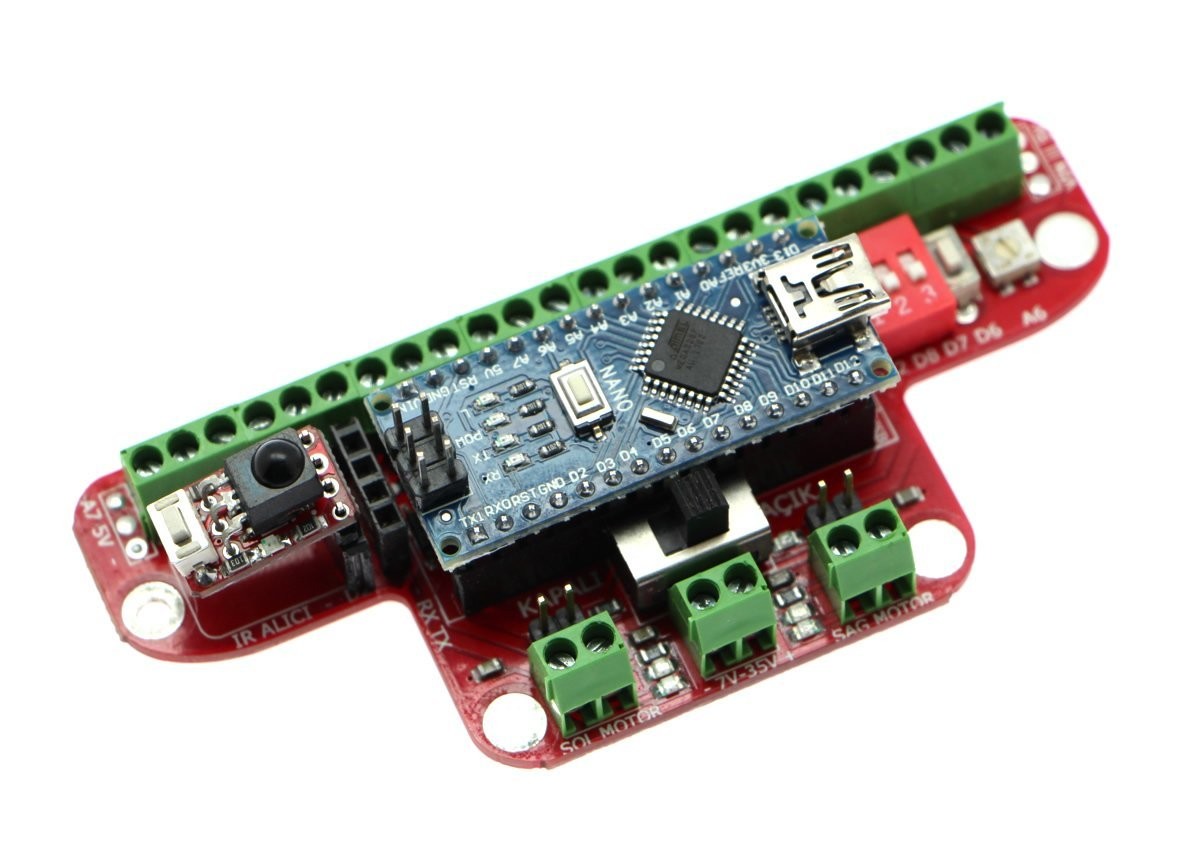

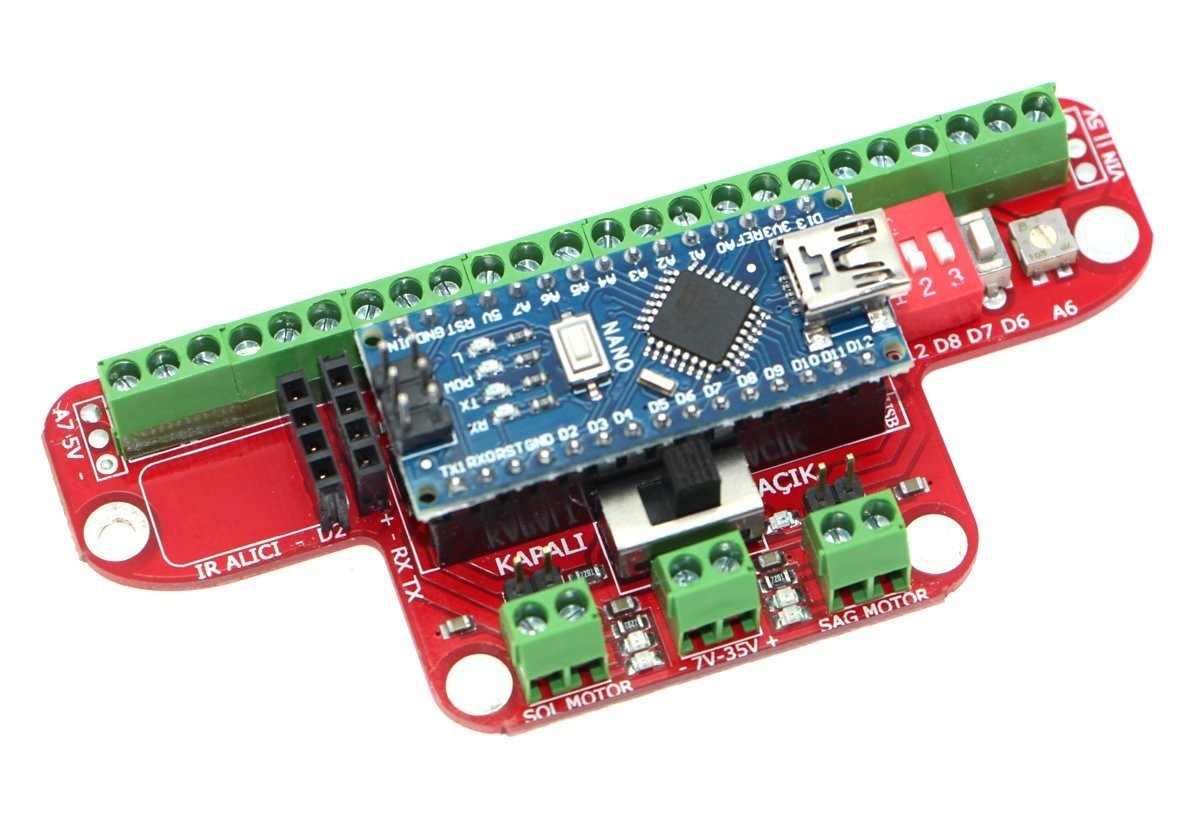

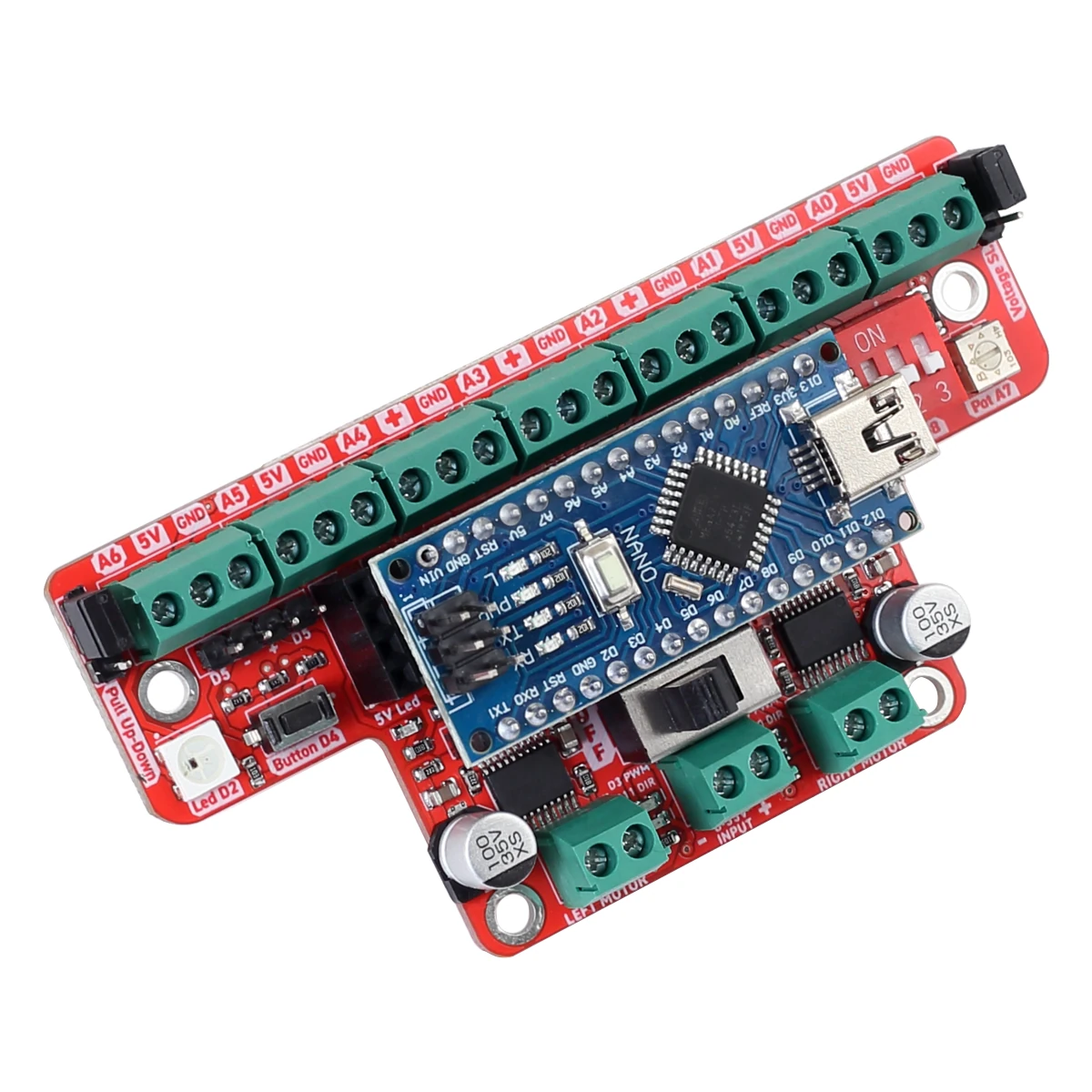

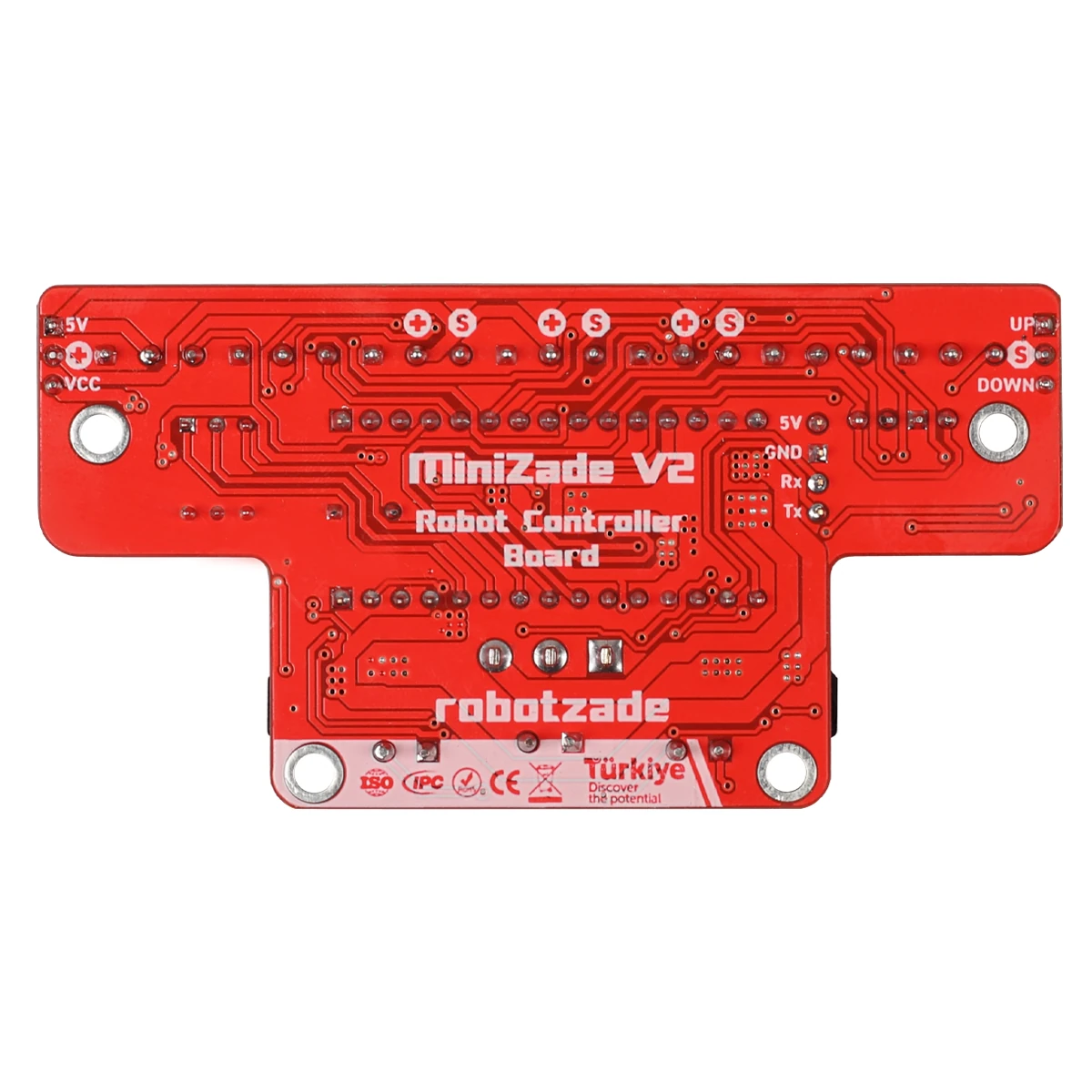

    Minizade is Arduino Based Control Board. It is Specially Designed by Our Team for Professional Mini Sumo Robots and other projects.

    One Step Ahead with Minizade Robot Controller Board. If you wanna be Winner, buy MiniZade and Make a difference in the rivalry.

    You can buy board with Arduino Nano İnclude or without Arduino nano.

    If you buy Minizade. We will give Advanced Software that has Special Tactics  for Contest as a free.

    Minizade is suitable for All Contest, has Started Module, no need to buy extra Start module. Start Module Allows you can control Speed of Robot, Tactics and More  By Remote controller. Minizade gives you opportunity Bluetooth Control. It has Bluetooth Pins you can buy Bluetooth module. You can Control and Drive your Robot by Mobile phone and Tablet. Also you can change Tactics, PID, Maximum speed, average speed on Mobile phone, Tablet or Smart Device.

    • Minizade has 2 option  5v or 12v for Sensors   , You can  Adjust voltage  By  Vin Pins .  You can control speed  of Robot  by Potentiometer .
    • Board has Short-Circuit Protection , OverVoltage Protection, Low Voltage Protection , Over Current and Overheating protection.

    Technical Specification
    Software and Programmer :Arduino IDE
    İnputs: Buttons ,İnfrared Reciever, Tactics Switch, Bluetooth ,Trimpot (adjust Speed )
    Outputs: Led, 2 Dc motor, Buzzer, Ports
    Micro Controller: Arduino Nano 328p
    Channel: 2 Channels
    Contionus Current: 4a Per Channel
    Voltage: 7v – 35v
    Wireless communication: Bluetooth and İnfrared
    Size   96 mm x 36 mm x 16mm
    Weight: 33 grams

    Arduino Pins
    • D7 Buzzer
    • D13 Start Module
    • A7 Record Button
    • A6 Trimpot
    • D8 Tactic Switch 1
    • D11 Tactic Switch 2
    • D12 Tactic Switch  3
    • D5 For Left Motor pwm1
    • D6 For Left Motor pwm2
    • D10 For Right Motor pwm1
    • D9 For Right Motor pwm2
    • D4 Ir İnfrared Receiver
